MG/105
MG/105
GALAXIE MONO 350 (Year 2016) with Flatbed die
Machine in excellent conditions
Machine available at present

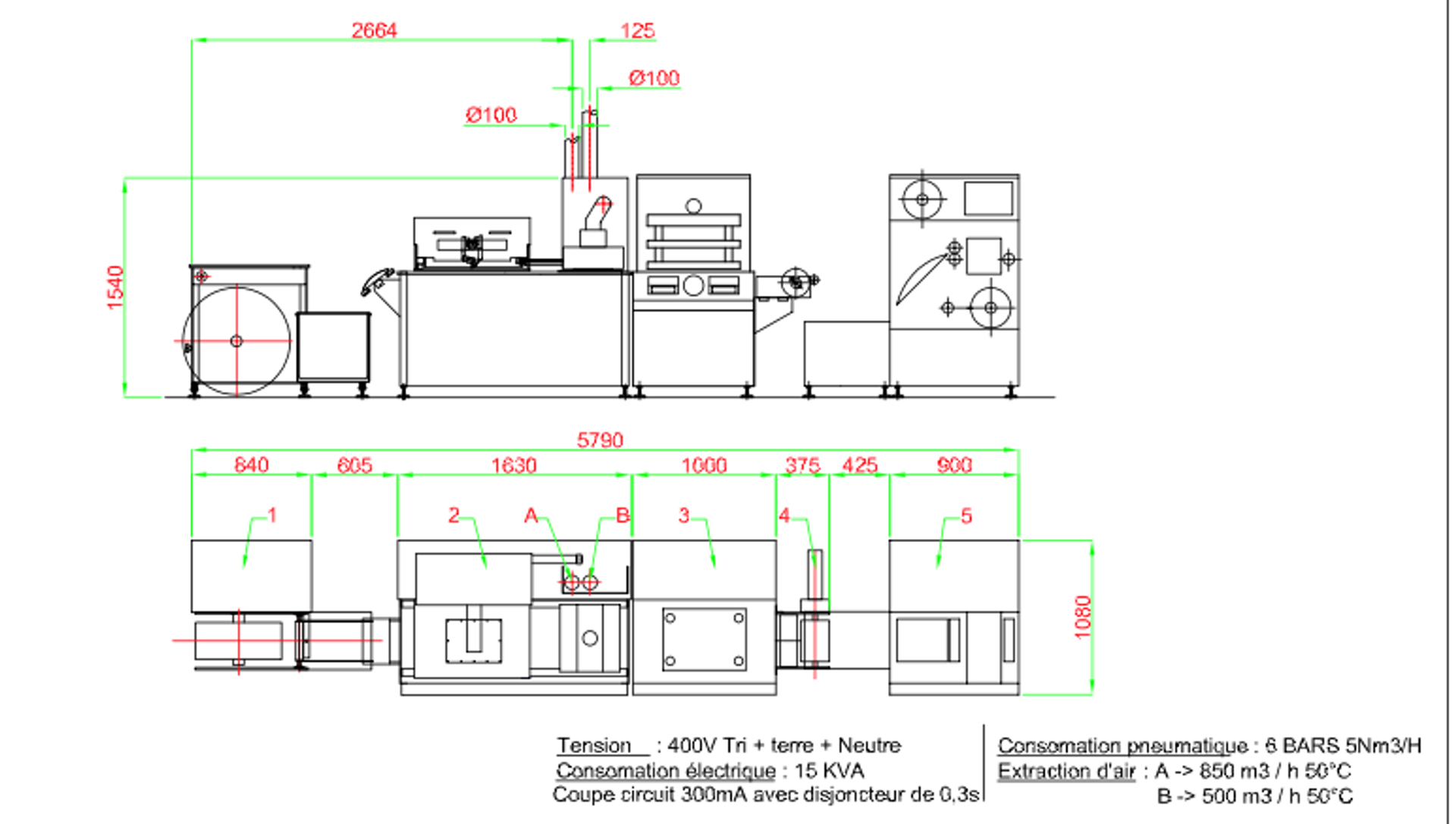

Line Drawing
Configuration
- Unwinder,

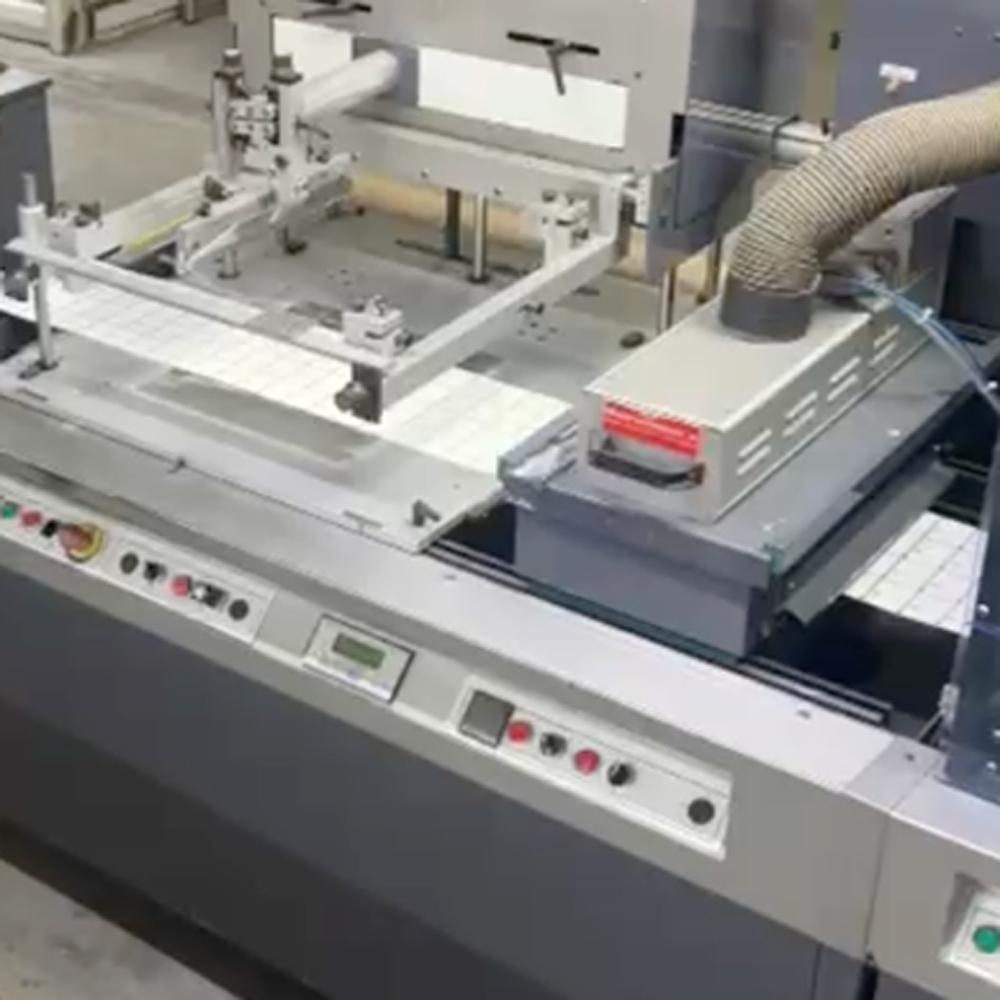

- Screen printing station with UV dryer (340×250),
- Hole punching unit on the screen printing station,

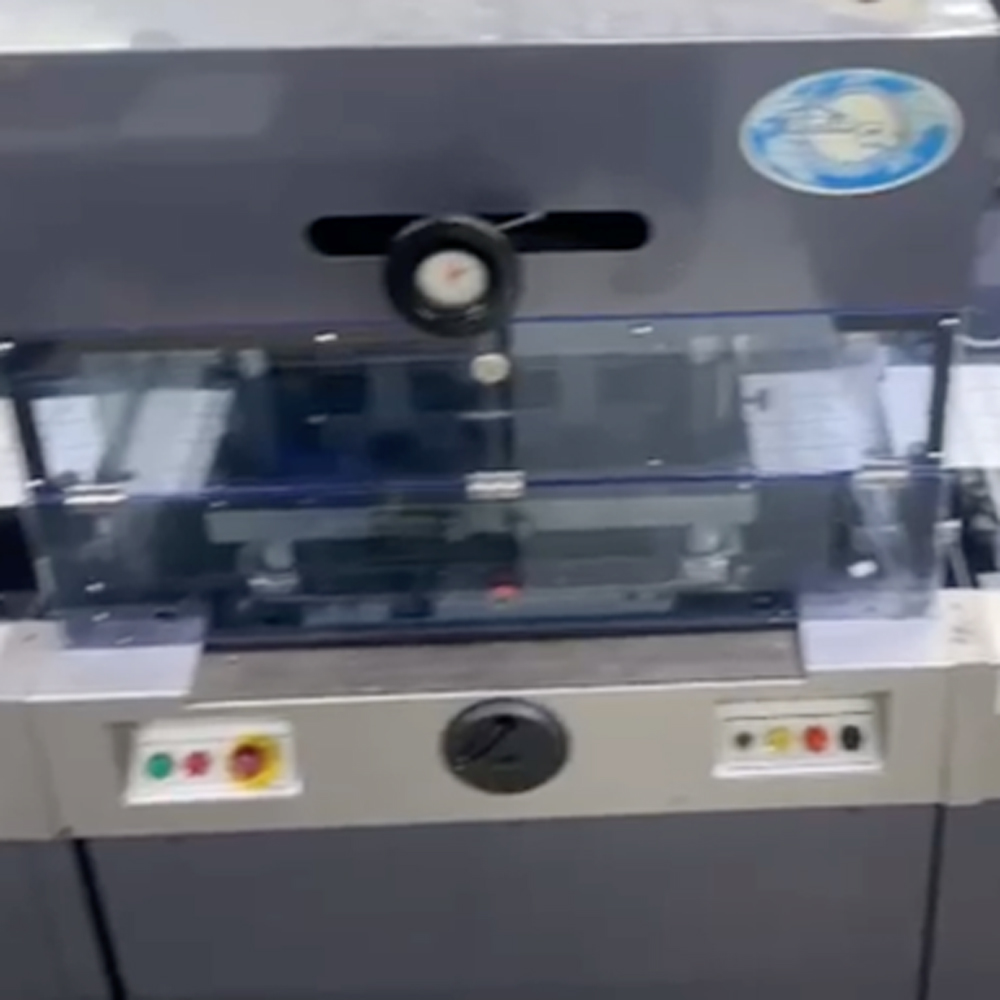

- Flat bed die cutting station (340×340),
- Central feeding servo station,
- Slitter, Waste rewinder and dual rewinding shafts.
- Working flow : from left to right
- Number of screen printing station : 1
- Max web width : 350 mm
- Max working area Screen station : 340 mm x 250 mm
- Max working area Die station : 340 mm x 340 mm
- Max. roll diameter (unwinder) : 750 mm
- Max. roll diameter (rewinder) : 450 mm
- Feeding servo precision (according to the type of substrate) +/- 0,1 mm
- Speed (according to printing stroke) : 2200 IPH with a stroke of 250 mm
Prices and terms
- PRICES:
- 49 000 Euros final user price
- Terms of transportation : Ex Works existing customer (near Lyon) with truck transportation packing
- Terms of installation : not included and as option
- Terms of payment : 30% at the order, 60% after before shipment, 10% after installation.
- Terms of warranty : None machine in good condition and full functionality
- Available now
