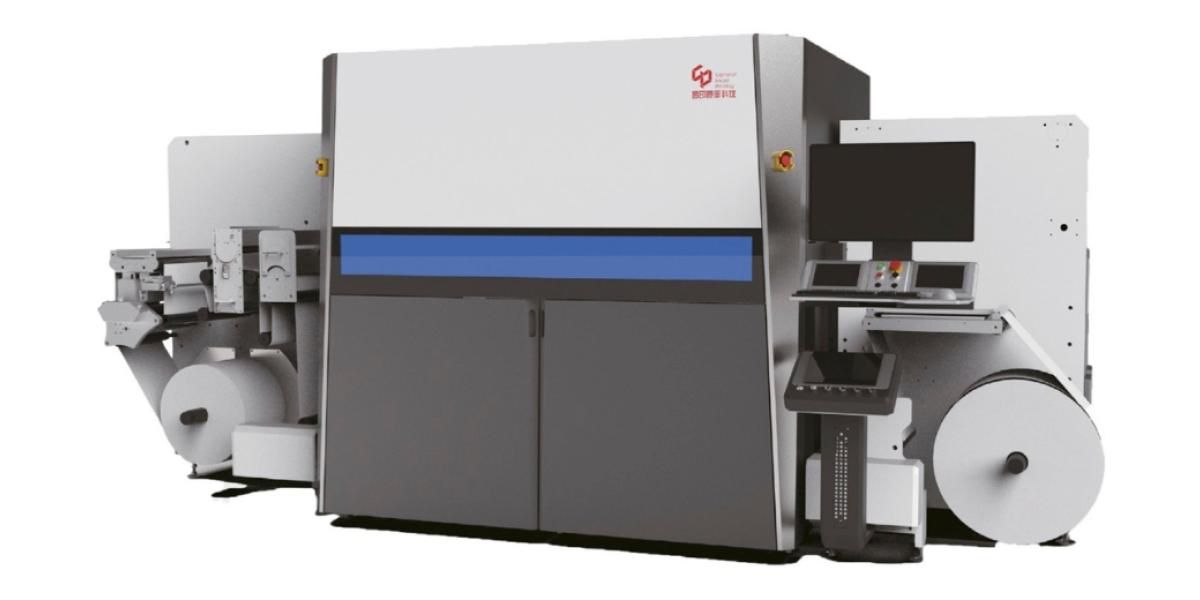

Label Ultra Series – Presentation
The Label Ultra Series is designed for small-format digital printing and full-color inkjet coding, offering an excellent price-performance ratio and low operating costs. Simple, intuitive, and stable, it reduces production expenses while increasing profitability.
As the professional and high-end model of GIP’s label range, Label Ultra integrates a 1200 dpi HD printhead, delivering exceptional precision and print quality that stands out in highly competitive markets.
Key Benefits – Label Ultra Series
- Highly flexible feeding system, compatible with all materials from 110 to 330 mm web width.
- Printing speed up to 75 m/min for high productivity.
- Insetter tracking sensor ensuring extremely accurate secondary overprint, fully solving registration issues.
- Broad color gamut UV inks, vivid and premium colors.
- Up to 1200 × 1200 dpi resolution for ultra-high-definition output.
- Automatic unwinding and rewinding system, preventing substrate shifting.
- Independent control boards for each printhead, improving efficiency and simplifying maintenance.
- LED cold-cure system, energy-saving and highly efficient.
Technical Specifications – Label Ultra Series
| Especificaciones | Label Ultra 330 HD |
|---|---|
| Tecnología de impresión | Inyección de tinta piezoeléctrica |
| Método de impresión | Una cara |
| Configuración de color | CMYK / CMYK + Blanco / CMYK + Blanco + OGV |
| Número de canales | 8 |
| Velocidad máxima | 75 m/min (CMYK) / 50 m/min (CMYK + Blanco) |
| Resolución | 1200 × 1200 dpi |
| Tipo de tinta | Tinta UV |
| Método de curado | LED UV |
| Ancho del material | 110 – 330 mm |
| Ancho máximo de impresión | 320 mm |
| Espesor del material | 50 – 400 μm |
| Tipos de material | PET, BOPP, PE, BOPA, PP, papel couché, papel sintético, papel artístico, etc. |
| Diámetro máximo del rollo | 700 mm |
| Alimentación eléctrica | 380 V |
| Consumo eléctrico | 40 kW |
| Aire comprimido | > 6,5 MPa |
| Consumo de aire | > 10 L/min |
| Temperatura de operación | 20 – 27 °C |
| Humedad de operación | 40 – 70 % RH |
| Sistema de ajuste de skew | Estándar |
| Eliminación electrostática de polvo | Estándar |
| Sistema de enfriamiento por agua | Estándar |
