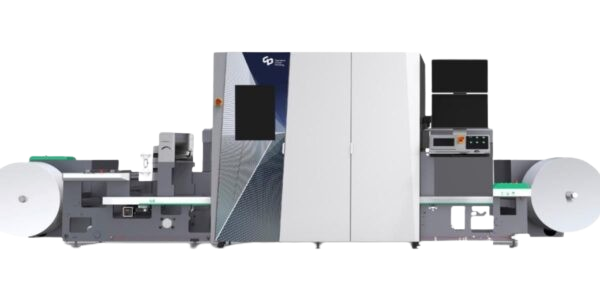

Label Modular Series – Presentation
The Label Modular Series is a hybrid press designed to meet the demanding and complex requirements of modern label production.
With its modular architecture, each line can be configured according to the customer’s real production workflow, offering unmatched flexibility.
It combines:
- high-speed full-color inkjet printing,
- easy substrate conversion,
- fully modular finishing and processing.
The Label Modular Series handles both highly complex jobs and ultra-precise work with exceptional speed, stability, and accuracy, significantly improving production efficiency.
Key Benefits – Label Modular Series
- Highly flexible feeding system, suitable for all materials from 150 to 450 mm web width.
- Printing speed up to 75 m/min.
- Hybrid & modular design, configurable for all production needs.
- Insetter tracking sensor for accurate secondary overprint and perfect registration.
- Resolution up to 1200 × 1200 dpi.
- Full customization with optional modules:
- coating,
- varnishing,
- cold-foiling,
- hot-foiling,
- laminating,
- die-cutting,
- visual inspection.
- Option to add three spot colors, up to 8 colors total (CMYK + White + OGV).
- Broad color-gamut UV inks, delivering vivid, high-impact colors.
Technical Specifications – Label Modular Series
| Specifications | Label Modular 330 | Label Modular 450 | Label Modular 330 HD | Label Modular 450 HD |
|---|---|---|---|---|
| Printing Technology | Piezoelectric Inkjet | Piezoelectric Inkjet | Piezoelectric Inkjet | Piezoelectric Inkjet |
| Print Method | One-side | One-side | One-side | One-side |
| Color Configuration | Up to 8 colors (CMYK + White + OGV) | same | same | same |
| Number of Channels | 8 | 8 | 8 | 8 |
| Max Speed | 47 m/min (600×600 dpi) / 23 m/min (600×1200 dpi) | 47 m/min (600×600 dpi) / 23 m/min (600×1200 dpi) | 75 m/min | 75 m/min |
| Resolution | 600×600 dpi / 600×1200 dpi | 600×600 dpi / 600×1200 dpi | 1200×1200 dpi | 1200×1200 dpi |
| Ink Type | UV ink | UV ink | UV ink | UV ink |
| Curing Method | UV LED | UV LED | UV LED | UV LED |
| Media Width | 150–340 mm | 220–450 mm | 150–340 mm | 220–450 mm |
| Max Print Width | 316 mm | 425 mm | 316 mm | 425 mm |
| Media Thickness | 50–400 µm | 50–400 µm | 50–400 µm | 50–400 µm |
| Media Type | PET, BOPP, PE, BOPA, PP, coated paper, synthetic paper, art paper, etc. | same | same | same |
| Max Media Roll Diameter | 650 mm | 650 mm | 650 mm | 650 mm |
| Power Supply | 380 V | 380 V | 380 V | 380 V |
| Power Consumption | 18–80 kW | 18–80 kW | 18–80 kW | 18–80 kW |
| Compressed Air | > 6.5 MPa | > 6.5 MPa | > 6.5 MPa | > 6.5 MPa |
| Air Consumption | > 10 L/min | > 10 L/min | > 10 L/min | > 10 L/min |
| Operating Temperature | 20–27 °C | 20–27 °C | 20–27 °C | 20–27 °C |
| Operating Humidity | 40–70% RH | 40–70% RH | 40–70% RH | 40–70% RH |
| Skew Adjustment System | Standard | Standard | Standard | Standard |
| Electrostatic Dust Removal | Standard | Standard | Standard | Standard |
| Water Cooling System | Standard | Standard | Standard | Standard |
| Optional Modules | Coating, Varnishing, Cold-foil, Hot-foil, Laminating, Die-cutting, Visual Inspection | Coating, Varnishing, Cold-foil, Hot-foil, Laminating, Die-cutting, Visual Inspection | Coating, Varnishing, Cold-foil, Hot-foil, Laminating, Die-cutting, Visual Inspection | Coating, Varnishing, Cold-foil, Hot-foil, Laminating, Die-cutting, Visual Inspection |
