Falcon Series – Overview

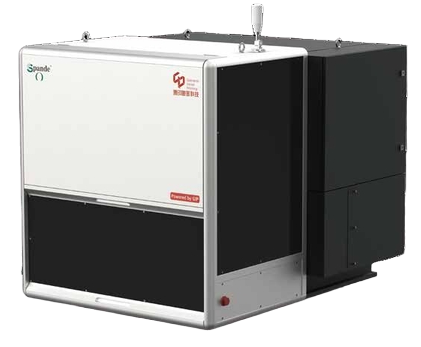

The Falcon Series is a mobile and fully modular digital printing platform designed to be installed directly onto an existing flexo printing line or used as a standalone module.
Thanks to its adaptable structure, the digital printing sequence can be customized according to the actual production workflow, offering maximum flexibility.
With its spot color matching capability and built-in Pantone library, the Falcon handles both complex label printing tasks and high-precision requirements with remarkable stability, delivering exceptional productivity.
Key Benefits – Falcon Series
- Highly flexible feeding system, compatible with all materials from 150 to 450 mm web width
- High-speed printing up to 80 m/min
- Movable digital printing platform, configurable according to production needs
- Broad-gamut UV inks, vivid and stable colors
- Resolution up to 1200 × 1200 dpi
- Customizable finishing modules:
- coating
- cold foiling
- hot foiling
- varnishing
- laminating
- die-cutting
- Spot color matching, integrated Pantone library
- Can be installed onto existing flexo printing lines with no major redesign
Technical Specifications – Falcon Series
| Specifications | Falcon 330 HD | Falcon 450 HD | Falcon 330C4 HD | Falcon 450C4 HD |
|---|---|---|---|---|
| Printing Technology | Piezoelectric Inkjet | Piezoelectric Inkjet | Piezoelectric Inkjet | Piezoelectric Inkjet |
| Color Configuration | White (W) | White (W) | CMYK | CMYK |
| Max. Speed | 50 m/min | 50 m/min | 80 m/min | 80 m/min |
| Resolution | 1200 × 1200 dpi | 1200 × 1200 dpi | 1200 × 1200 dpi | 1200 × 1200 dpi |
| Ink Type | UV Ink | UV Ink | UV Ink | UV Ink |
| Curing Method | UV LED | UV LED | UV LED | UV LED |
| Media Width | 150–340 mm | 220–450 mm | 150–340 mm | 220–450 mm |
| Max. Print Width | 319 mm | 426 mm | 319 mm | 426 mm |
| Media Thickness | 50–400 µm | 50–400 µm | 50–400 µm | 50–400 µm |
| Media Types | PET, BOPP, PE, BOPA, PP, coated paper, synthetic paper, art paper, etc. | same | same | same |
| Power Supply | 380 V | 380 V | 380 V | 380 V |
| Power Consumption | 18–80 kW | 18–80 kW | 18–80 kW | 18–80 kW |
| Compressed Air | > 6.5 MPa | > 6.5 MPa | > 6.5 MPa | > 6.5 MPa |
| Air Consumption | > 10 L/min | > 10 L/min | > 10 L/min | > 10 L/min |
| Operating Temperature | 20–27 °C | 20–27 °C | 20–27 °C | 20–27 °C |
| Operating Humidity | 40–70% RH | 40–70% RH | 40–70% RH | 40–70% RH |
